Rof Elektro-optik modulyatori 1550nm LiNbO3 intensivlik modulyatori 50G

Marathi

Mo'g'ulcha
Birmacha
Nepalcha
Norvegcha

RofForscha	RofSerbcha	RofSinhala	RofSlovencha	RofSamoa	Shotlandiya Gael tiliRofSindhi
Operating wavelength	Suaxili tili	Tojikcha	Tamilcha	Telugu	Taylandcha
Ukraina	10GHz	10GHz	10VetnamchaGHz	Xosacha	50GHz	10GHz	20GHz	40GHz
Insertion Loss	＜5dB	＜5dB	＜5dB	＜5dB	＜4dB
Extinction ratio @DC	＞20dB	＞20dB	＞20dB	＞20dB	＞20dB
V_Π@RF (1KHz)	＜3V	＜3V	＜4V	<3.5V	＜6V	<5V
V_Π@Bias	＜3.5V	＜3.5V	＜5V	<5V	<8V	<7V

Ordering Information

Rof

XXG

Type：AM---Intensity Modulator

Wavelength：

07---780nm
08---850nm

10---1060nm

13---1310nm

15---1550nm

Bandwidth：

10GHz

20GHz

40GHz

50GHz

Monitor PD:

PD---With PD
00 --- No PD

In-Out Fiber type：PP---PM/PM

Optical connector：FA---FC/APCFP---FC/PC

SP---Customization

R-AM-07-10G

Wavalength 710nm 10GHz Intensity modulator

Parameter				Symbol		Min	Typ	Max	Unit
Optical parameters
Operating wavelength				l		760	780	800	nm
Insertion loss				IL			4.5	5	dB
Optical return loss				ORL				-45	dB
Switch extinction ratio @DC				ER@DC		20	23		dB
Optical fiber	Input port					PM780 fiber(125/250μm)
	output port					PM780 fiber(125/250μm)
Optical fiber interface						FC/PC、FC/APC Or Customization
Electrical parameters
Operating bandwidth （-3dB）					S₂₁	10	12		GHz
Half-wave voltage Vpi		RF			@1KHz		2.5	3	V
		Bias			@1KHz		3	4	V
Electrical return loss					S₁₁		-12	-10	dB
Input impedance			RF		Z_RF	50			W
			Bias		Z_BIAS	1M			W
Electrical interface						SMA(f)

Limit Conditions

Parameter	Symbol	Unit	Min	Typ	Max
Input optical power	P_in,Max	dBm			20
Input RF power		dBm			28
bias voltage	Vbias	V	-15		15
Operating temperature	Top	℃	-10		60
Storage temperature	Tst	℃	-40		85
Humidity	RH	%	5		90

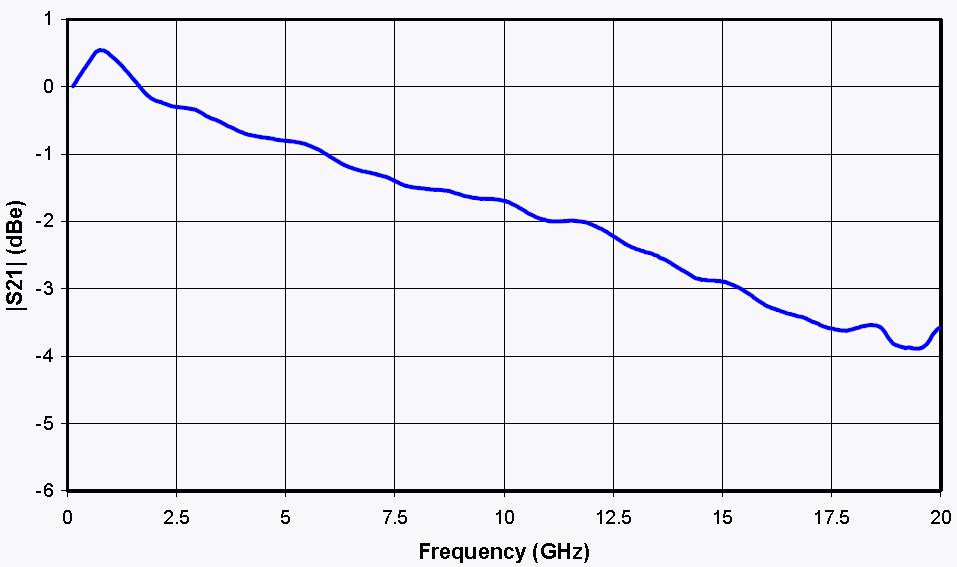

S21 Curve

&S11 Curve

Rof Elektro Optik Modulyatori 1064nm Eo modulyatori LiNbO3 faza modulyatori 2G

S21&s11 curves

Mechanical Diagram
